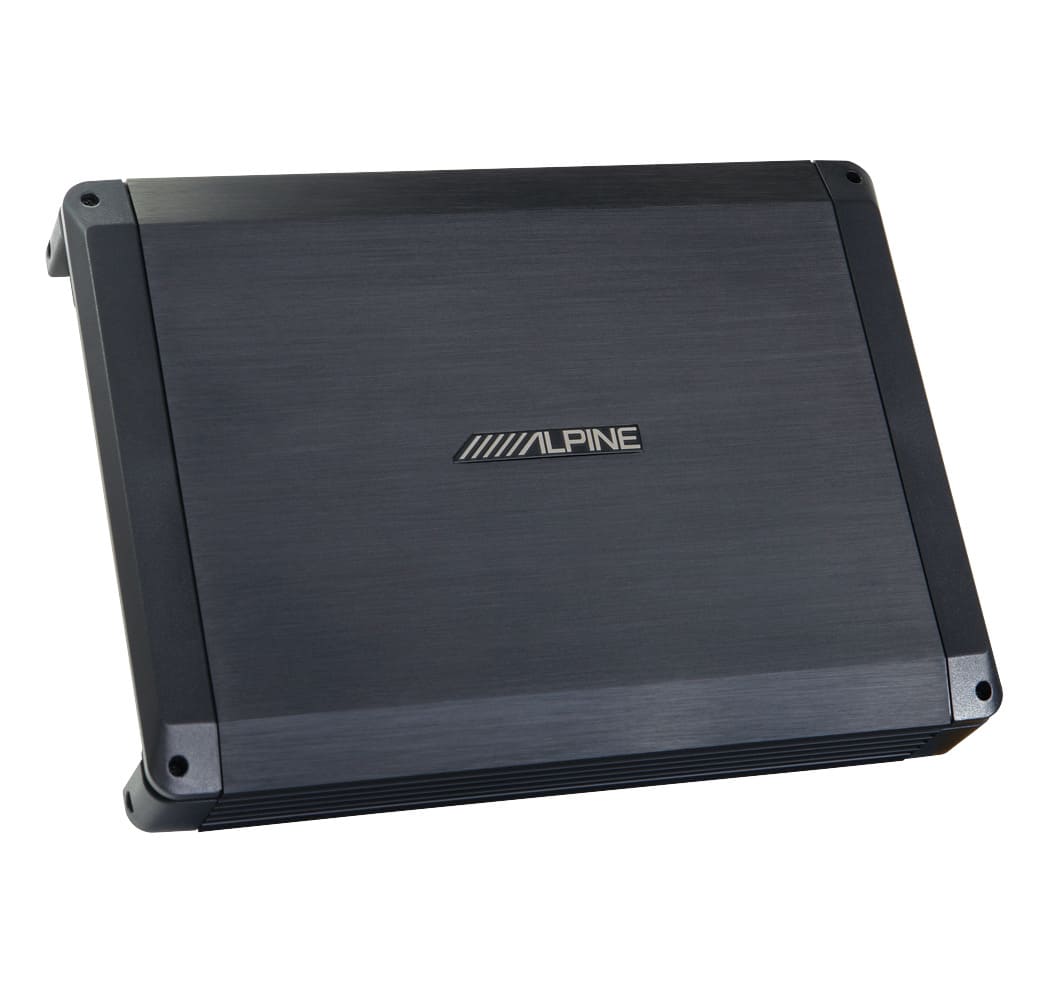

BBX-F1200

4/3/2 CHANNEL POWER AMPLIFIER

This new BBX amplifier gives you Alpine power performance at an amazing price. And they’re designed to fit easily in virtually any system. This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.

High pass and low pass filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.
Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.

  • Features

  • Tech Specs

  • Support & Download

High Output Power in an Amazing Price

Type

  • Class A/B
  • 4/3/2 Channel

Frequency response

  • 5 – 50KHz

Power handling

  • 1200 watts max power
  • 4 x 50 watts RMS power at 4 Ohms
  • 4 x 70 watts RMS power at 2 Ohms
  • 2 x 130 watts Bridged power at 4 Ohms

Design

  • Thermal protection
  • Current protection
  • Crossover adjustable : 50 - 400Hz (-12 dB/oct )

Dimension

  • 220 x 56.5 x 210 mm

Owner's Manual

OM_BBX_F1200.pdf
